Cache Manager

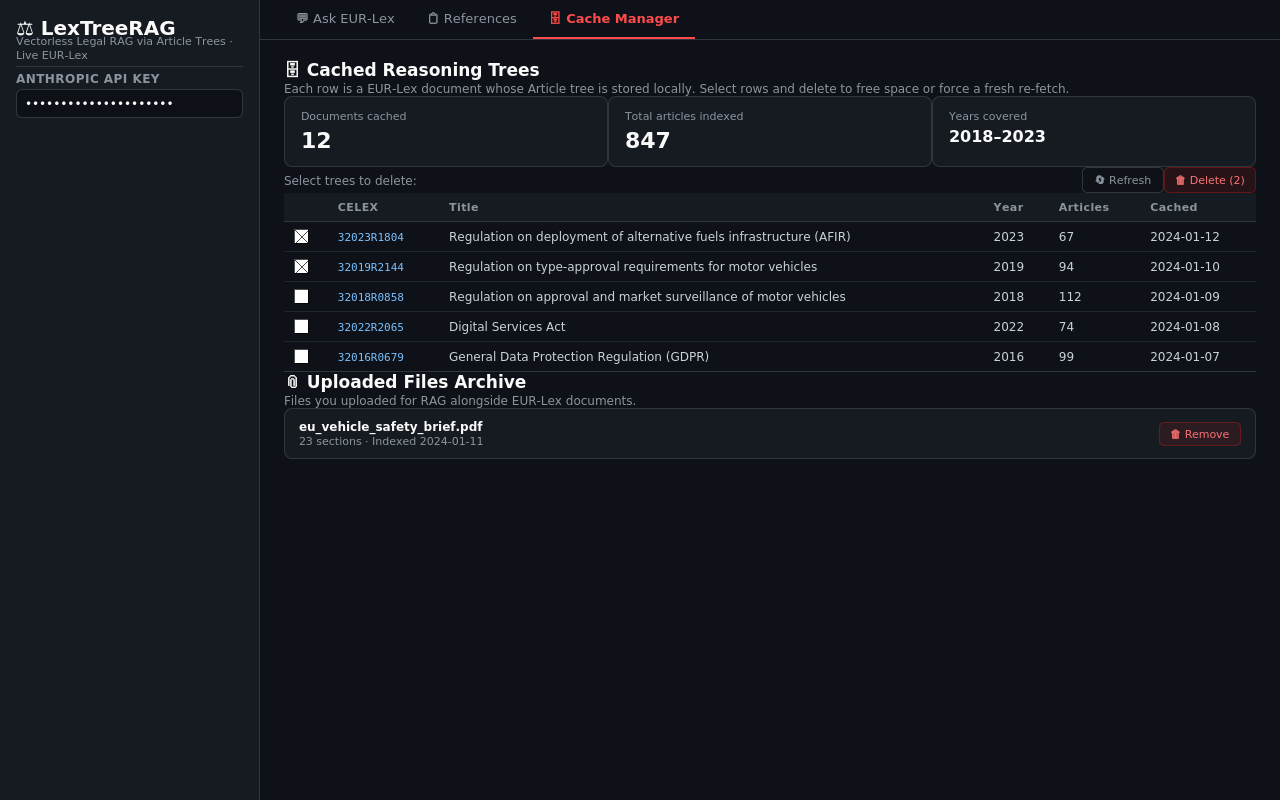

Cache Manager UI Cache Manager tab — cached tree table, summary metrics, and uploaded files archive

Browse and manage the three local data stores that prevent re-fetching EUR-Lex documents on every query.

File: app.py — with tab_cache:

Cached Reasoning Trees

Column Source Field Calculation Business meaning
CELEX data/cache/**/*.json json["doc_id"] Raw string, truncated to 80 chars EUR-Lex document identifier
Title data/cache/**/*.json json["title"] Truncated to 70 chars Full regulation or directive title
Year data/cache/**/*.json json["year"] str(year) 4-digit document year
Articles data/cache/**/*.json len(json["nodes"]) Count of node dicts in the array Number of Article nodes in the reasoning tree
Cached data/cache/**/*.json json["indexed_at"] ISO datetime truncated to date ([:10]) Date this document was first indexed

Data path: list_cached_trees() in app.py → glob.glob("data/cache/**/*.json", recursive=True) → reads each file.

Delete: select from multiselect → delete_trees(selected_files) → os.remove(f) per file → st.rerun().

Summary Metric Cards

Metric Calculation
Documents cached len(trees)
Total articles indexed sum(t["Articles"] for t in trees)
Years covered f"{min_year}–{max_year}" from sorted unique years

Uploaded Files Archive

Field Source Calculation Meaning
Title data/cache/uploads/*.json ut["title"] Original uploaded filename
Sections data/cache/uploads/*.json len(ut["nodes"]) Number of chunks the file was split into
Indexed data/cache/uploads/*.json ut["indexed_at"][:10] Date the file was first processed

Data path: load_all_upload_trees(CACHE_DIR) in pipeline/doc_ingester.py → lists data/cache/uploads/*.json.

PDF Archive

Column Source Calculation Meaning
CELEX Filename under data/pdfs/ Filename minus .pdf EUR-Lex identifier (underscores may replace /)
Year Directory name os.path.basename(root) Year folder the PDF is stored under
Size KB os.path.getsize(fpath) round(size / 1024, 1) File size in kilobytes
Path Full filesystem path Absolute path Where the PDF is stored on disk

Data path: list_archived() in pipeline/pdf_archive.py → os.walk("data/pdfs/") → skips inbox/.

PDF Inbox Auto-indexing

On app startup, if a client is authenticated:

  1. scan_inbox(CACHE_DIR, client) — pipeline/pdf_archive.py
  2. For each .pdf in data/pdfs/inbox/:
    • CELEX detected from filename via regex
    • If already cached → skip
    • Else → build_tree() → JSON saved → PDF moved to data/pdfs/{year}/{celex}.pdf
  3. Count of newly indexed PDFs shown as sidebar success message
