Chat — Ask EUR-Lex

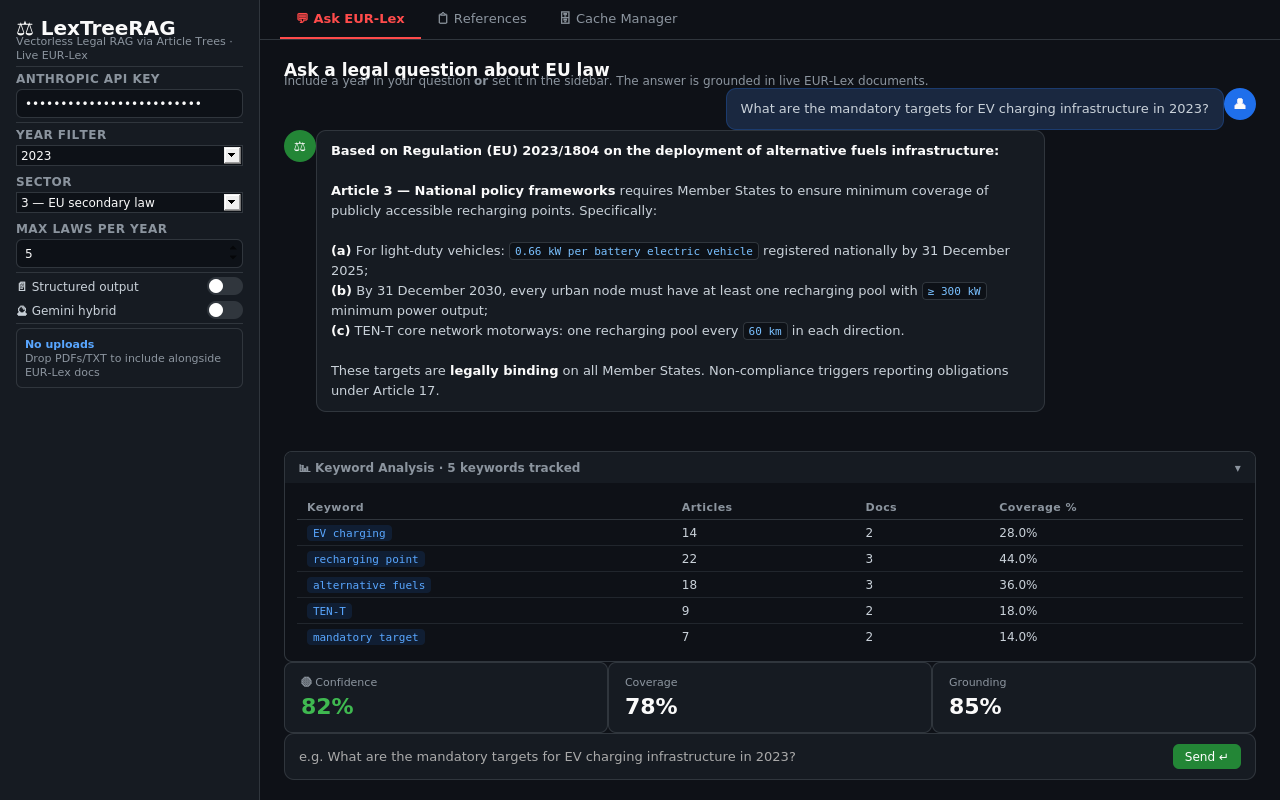

Chat page UI Ask EUR-Lex tab — question input, streamed answer, keyword analysis table, and confidence metrics

The main interface. Type a legal question, get a cited answer grounded in live EUR-Lex documents.

File: app.py — with tab_ask:

Keyword Analysis Table

Shown after every query in an expandable panel. Rendered as a plain HTML table.

Column Source Calculation Business meaning
Keyword keyword_extractor.py + regex From extract_keywords_and_year() + _extract_exact_signals() Search term used to find EU regulations
Articles In-memory, keyword_article_stats() in app.py Count of tree nodes whose text + title + summary contains the keyword (case-insensitive) How many article nodes mention this keyword
Docs In-memory, keyword_article_stats() Count of distinct trees with at least one matching node How many EUR-Lex documents mention this keyword
Coverage % In-memory round(art_hits / total_nodes * 100, 1) Share of all retrieved articles that mention this keyword

Data path: st.session_state.kw_stats ← run_query()["kw_stats"] ← keyword_article_stats() in app.py

Confidence Metrics

Three st.metric() cards shown after every answer.

Metric Calculation Meaning
Confidence round(0.4 × coverage + 0.6 × grounding) Overall answer quality 0–100. ≥75 high, 50–74 medium, <50 low
Coverage Claude Haiku scores 0–100 Do the retrieved articles cover all aspects of the question?
Grounding Claude Haiku scores 0–100 Are the answer's claims traceable to article text?

Full Query Pipeline

1. Question classification

pipeline/query_classifier.py → classify_question()

  • Model: claude-haiku-4-5, max_tokens=300
  • Returns: definitional | compliance | comparison | timeline | complex | general
  • complex → decomposed into 2–4 sub-questions, each searched independently

2. Keyword extraction

pipeline/keyword_extractor.py → extract_keywords_and_year()

  • Model: claude-haiku-4-5, max_tokens=256
  • Returns keywords, year, exact regulation/article signals (regex), query variants
  • Obligation expansion: if question contains requir, document, mandatory... → injects ["shall", "required", "obligation"]

pipeline/eurolex_client.py → search_eurlex()

SPARQL endpoint: https://publications.europa.eu/webapi/rdf/sparql

Four-pass strategy:

Pass Strategy Purpose
0 AND: domain term + topic term Vehicle-specific regulations
1 OR: specific (low-noise) keywords Main keyword match
2 OR: all keywords including noisy Fallback
3 Drop sector filter Last resort, widest coverage

4. Document fetch

pipeline/eurolex_client.py → fetch_documents_parallel(max_workers=3)

Per document:

  1. Check local PDF archive (data/pdfs/{year}/{celex}.pdf)
  2. Resolve SPARQL expression slot number
  3. Try PDF at discovered slot
  4. Try PDF at default slot 0001
  5. Try HTML → Markdown conversion

5. Reasoning tree build

pipeline/tree_builder.py → build_tree()

  • Cache check: data/cache/{year}/{celex}.json → return immediately if found
  • Parse articles with regex _ART_HEADER + _ANNEX_HEADER
  • Articles > 5,000 chars → sub-chunked into ~3,000-char parts
  • No Article headers → paragraph fallback chunking
  • Claude Haiku generates 1-sentence summary per article (batches of 12)

6. Tree navigation

pipeline/tree_navigator.py → navigate_tree()

  • Builds slim tree: only summaries + [OBL]/[LIST] badges, no full text
  • Claude Haiku scores articles 0–10, discards < 4
  • Parent node selected → all sub-nodes included automatically

pipeline/eurolex_client.py → follow_citation_links()

  • Regex-extracts EU act citations from selected article texts
  • Fetches up to 3 linked documents not already in tree set
  • Re-navigates if new documents added

8. Python reranking

pipeline/clause_ranker.py → rerank_nodes()

final_score = base_relevance + min(obligation_score, 6) + min(list_score×2, 6) + penalty
  • obligation_score: counts shall, must, required to, etc. on original text
  • list_score: counts (a)(b)(c), numbered items, table rows, dash lists
  • penalty = -4.0 if title is "scope/definitions/subject-matter" AND no obligation keywords

9. Answer generation

app.py → answer_stream() / answer_structured()

  • Model: claude-opus-4-6, max_tokens=4096, thinking: {"type": "adaptive"}
  • Prose mode: streaming, 8-rule system prompt (cite exact provisions, no speculation, self-check)
  • Structured mode: returns JSON {summary, obligations, rights, definitions, exceptions, procedure, references, caveats}

10. Confidence scoring + retry

pipeline/answer_verifier.py → compute_confidence()

  • Model: claude-haiku-4-5, max_tokens=400
  • If score < 50 or coverage < 40 → up to 2 automatic retries:
    • Attempt 2: obligation-expanded keywords
    • Attempt 3: drop year filter, expand sectors, +3 max docs
  • After 3 attempts still low → keyword discovery UI shown

Session State Reference

Key Type Description
history list[dict] Full conversation [{role, content, references, meta}]
references list[dict] Last answer's article references
kw_stats list[dict] Keyword analysis rows
prev_selected_nodes list[dict] Nodes from last answer (conversation memory)
upload_trees list[dict] Trees built from user-uploaded files
structured_mode bool JSON output vs. prose streaming
